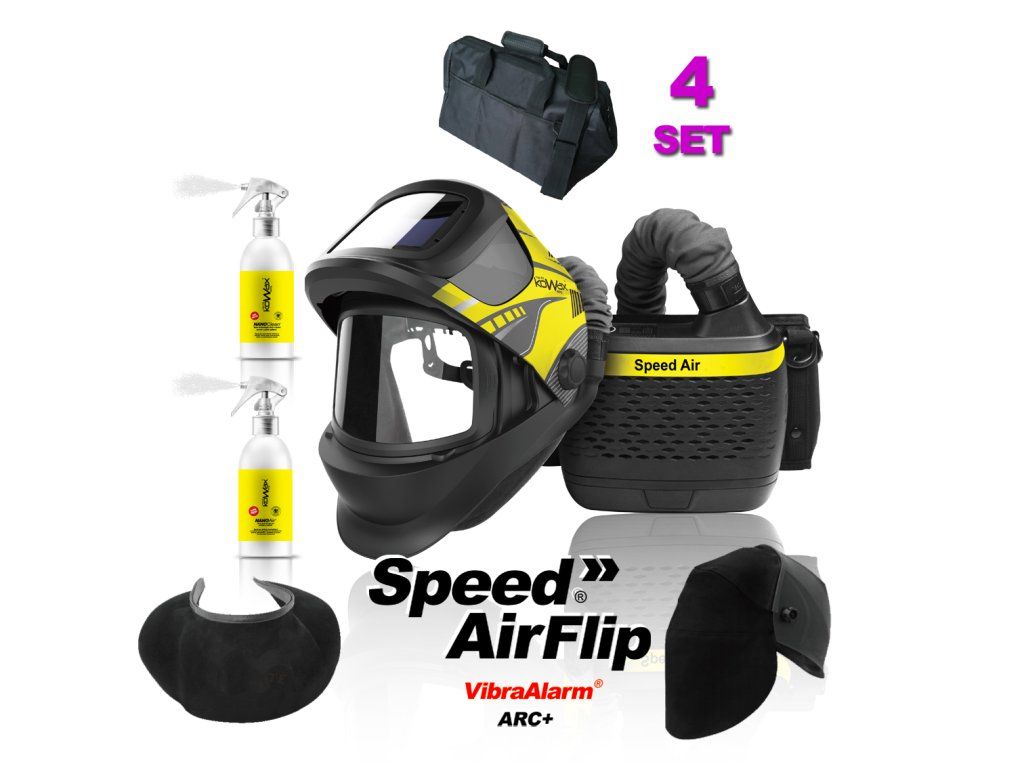

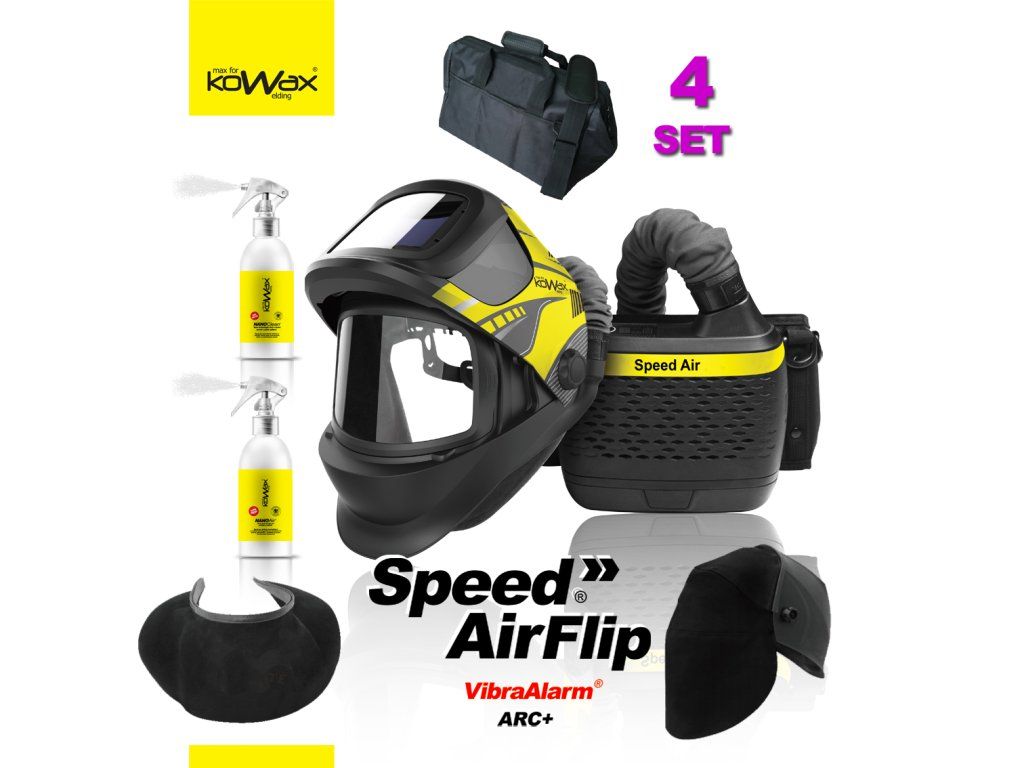

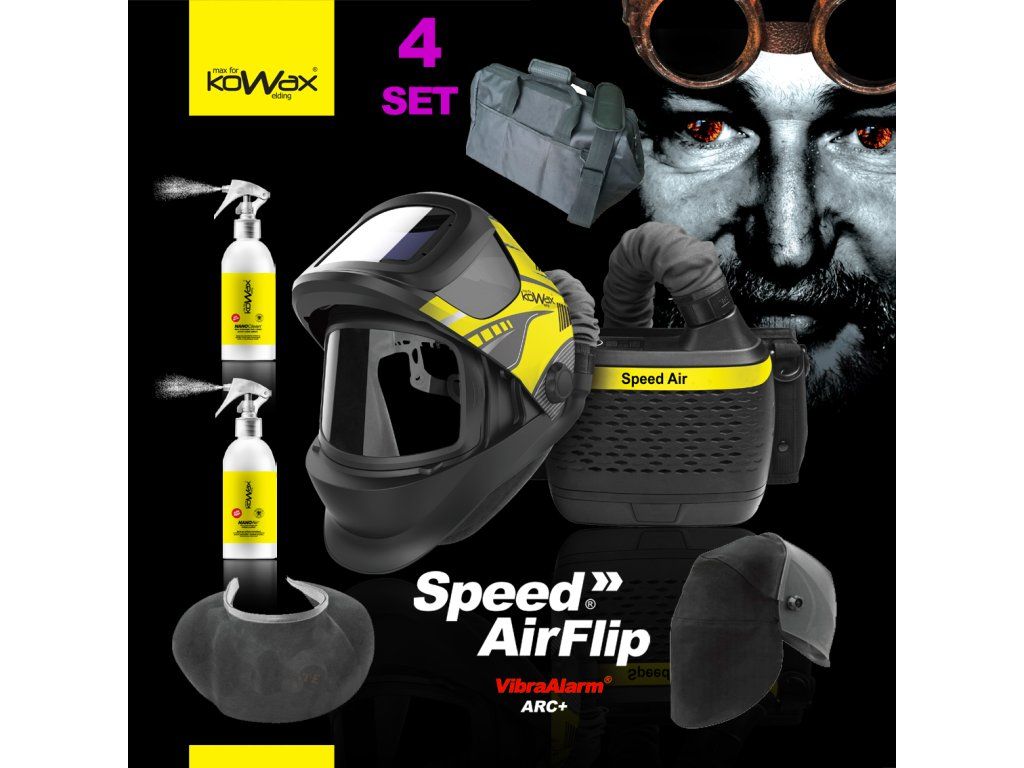

PAPR Speed Air® Flip (1/1/1/1) SET4 with FlipARC+ helmet
Code: KWXSAF_S04A
_en.png?678531f8)
Related products
Product detailed description
Main advantages:
New top-of-the-line KOWAX® Speed Air® filter and ventilation unit combined with a new helmet with hinged filter. KOWAX® FlipARC+ offers excellent protection against fumes from welding, grinding, etc.
KOWAX® FlipARC+ helmet:
- Exclusive 1/1/1/1 EN379 technology
- With a huge 107 x 75mm field of view
- Realistic colour rendering across the entire colour spectrum (ARC+ function)
- Digitally controlled self-dimming filter (control display)
- Large side visors included
- Aperture ranges DIN 5-8, 9-13
- Brightened state DIN 4
- Grinding function
- 4 optical sensors
- Ergonomic headgear for maximum comfort
- Velcro face seal
- Air distribution along the shell sidewall, air exhaust to the mouth from the bottom
- Integrated magnifier holders
- Certified CE, DINplus, ANSI Z87.1, CSA Z94.3, AS/NZS 1338.1
KOWAX® Speed Air® filter and ventilation unit:
- Suitable for all welding applications in the most demanding working conditions
- Patented unit shape is designed for small spaces
- Air flow 170 l/min. or 210 l/min. depending on the environment and type of application
- Operating time per charge: 9h at 170l/min, 5h at 210l/min (STANDARD battery)
- Equipped with the unique VibraAlarm® function ( alerts the operator by vibration when the filter needs to be changed or the battery recharged).
- Variable speed fan motor
- Weight only 1027g ( for unit + STANDARD FAST battery)
- Certified EN12941 TH3 (highest level of respiratory protection)
FREE- NANOCklean 200ml helmet cleaner
FREE - KOWAX Leather Neck Protector
FREE- KOWAX head protection
FREE - Bag
For the whole kit:
- Cheap consumables and spare parts.
TECHNICAL SPECIFICATIONS FOR UNIT
|
Air flow |
Minimum: 165l/min |
|
|
Battery standard FAST |
Battery type: rechargeable Li-ion battery Li-Ion |
|
|
|
Operating time per charge: 9h at 170l/min, 5-6h at 210l/min. |
|
|
|
Charging time: 1 hour |
|
|
|
Battery life: approximately 550 charges |
|
|
Filter |
Type: P3 R SL |
|
|
|
Filter efficiency: 99.97% |
|
|
|
Clogging Warning: visual, audible, vibration |
|
|
Temperatures |
Operating Temperature: -5°C ~ 55°C |
|
|
|
Storage temperature: -10°C ~ 55°C |
|
|
Relative humidity |
Operating <90% |
|
|
Weight |
1027g (for unit+battery FAST) |
|
|
Unit certification |
EN12941 TH3 (highest level of respiratory protection) |
TECHNICAL SPECIFICATIONS OF THE HELMETS
Optical class: |
1 / 1 / 1 / 1 |
|
Field of view: |
107 x 75mm ( 4.21" x 2.95") |
|
Filter cartridge size: |
156 x 123 x 33mm (6.14" x 4.84" x 1.30") |
|
Number of sensors: |
4 |
|
Aperture Brightened: |
DIN 4 |
|
Grinding aperture GRIND: |
DIN 4 |
|
Cutting aperture CUTTING: |
Variable DIN 5 ~ 8 |
|
WELD Welding orifice: |
Variable DIN 9 ~ 13 |
|
Aperture control: |
Internal on digital display |
|
On/Off: |
With GAS automatic |
|
Sensitivity setting: |
Internal on digital display |
|
UV/IR protection: |
Up to DIN16 aperture permanently |
|
Power Source: |
Solar cell + 2xCR2450 replaceable lithium battery |
|
Low battery indicator |
YES |
|
Darkening speed: |
1/25,000s. from light to dark |
|
Delay (dark to light): |
0.1~1.0s adjustable internally on digital display |
|
Low current TIG welding: |
≥2 [ A] (DC); ≥2 [A] (AC) |
|
Grinding： |
YES |
|
Working temperature: |
-10°C ~ +55°C（14°F ~ 131°F）. |
|
Storage temperature: |
-10°C ~ +70°C（- 14°F ~ 158°F） |
|
Helmet material: |
High impact resistant Nylon |
|
Weight: |
160g (automatic filter) |
|
650g (skeleton, filter, without head cross) |
|
|
Range of use: |
Holy wrap electrode (SMAW-MMA); TIG DC/AC, TIG DC Pulse; TIG AC Pulse, MIG/MAG/CO2; MIG/MAG Pulse;Plasma cutting (PAC); Plasma welding (PAW); Flame welding (OFW), Oxygen burning (OC), Carbon electrode cutting (CAC-A), Grinding |
|
Certified: |
CE, DINplus,ANSI Z87.1, CSA Z94.3, AS/NZS 1338.1 |
Additional parameters
| Category: | FLIP (v3) |
|---|---|
| Weight: | 7.301 kg |
| EAN: | 0796554476308 |
| Model: | PAPR+FlipARC+ |
| Vhodná pro metody: | TIG / MIG / MMA |
| Celkové rozměry stmívací kazety: | 156 x 123 x 33 |
| Rozměr zorného pole: | 107x75 |
| Optická třída EN379: | 1/1/1/1 |
| Rozsah clony DIN: | 5-8 / 9-13 |
| Pracovní teplota: | -5°C / +55°C |
| Zdroj energie: | Baterie CR2450 + Solarní článek |
| Solární panel: | ANO |
| Počet senzorů: | 4 |
| Clona při rozjasnění DIN: | 4 |
| Ochrana pře UV/IR zářením: | DIN 16 |
| Rychlost zatmavení: | 0,04 |
| Režim broušení: | ANO |
| Indikátor stavu baterie: | ANO |
| Zapnutí: | Plně automatické |
| Materiál: | Nylon |
