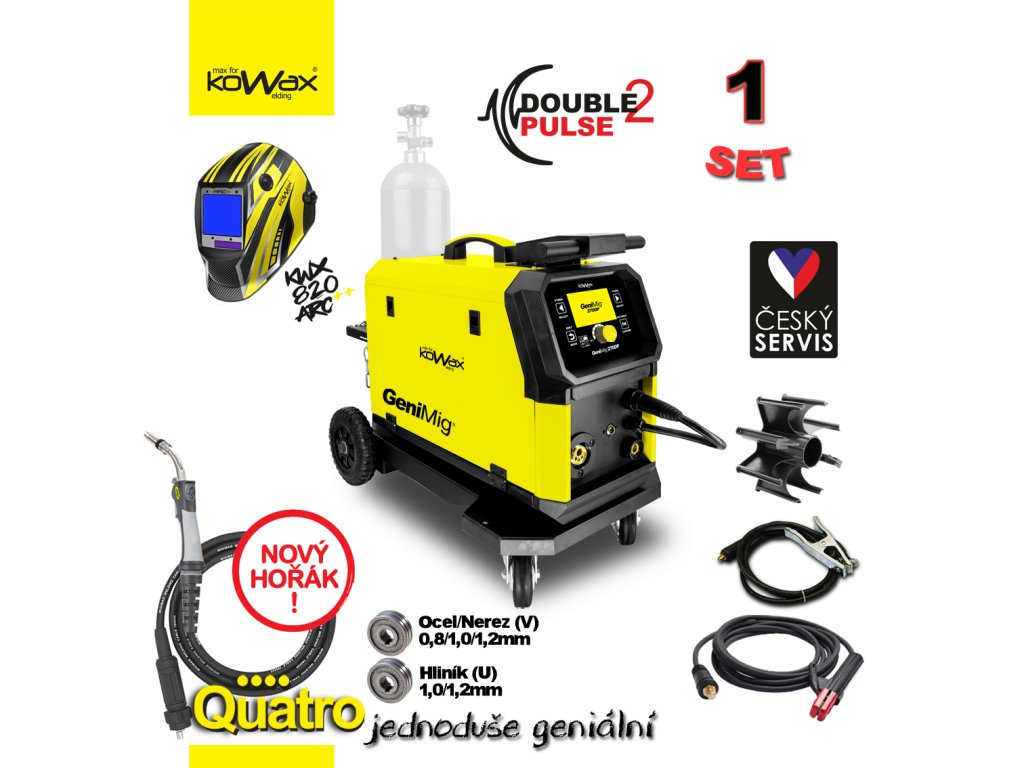

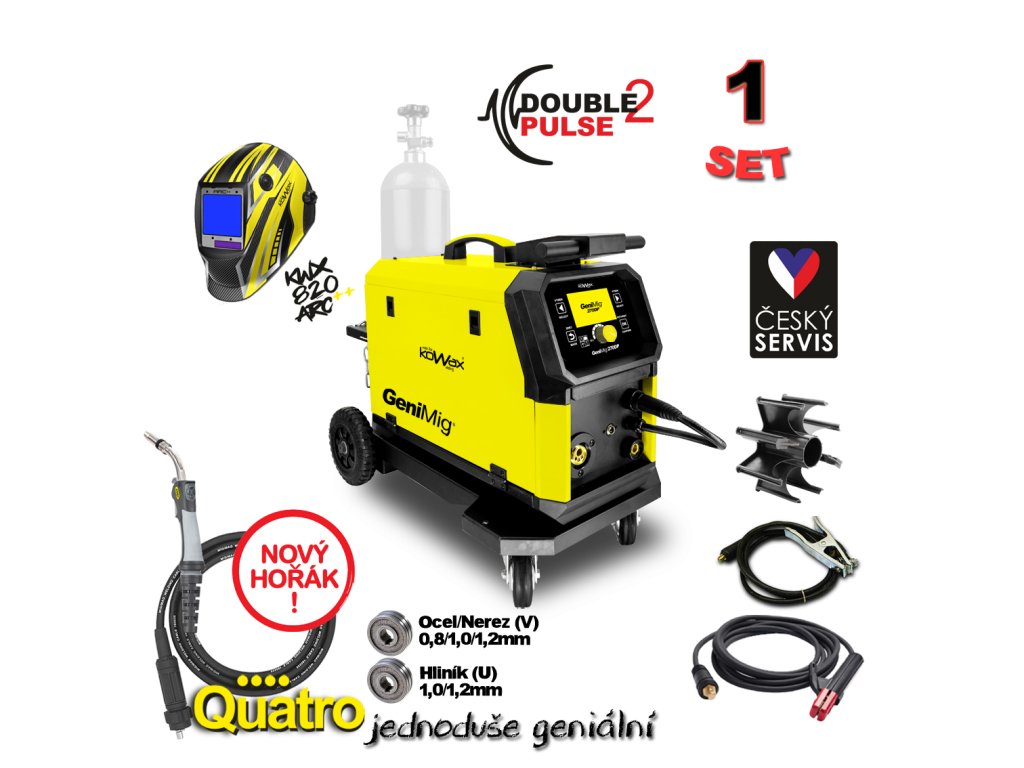

Welding inverter GeniMig® 270DP SET1Q (MIG/MAG/LiftTIG)
Code: KWXSTGM270DP_S01Q
_en.png?678531f8)
Related products
Product detailed description
What will make you happy:
- Power up to 250 A for MIG/MAG and even TIG or MMA.
- 4-pack professional feeder.
- Liner and feeding rollers for steel, stainless steel and aluminium - all ready to go.
- Digital controls, protections, USB update, and if you like things in your memory - you have 18 channels on your own JOBY.
- Three phase input ~3x400V+/-15%.
- Coils 300mm/15kg, 200mm/5kg.
- 2T/4T/Scoring/S2T/S4T.
Included:
✔️ Exclusive KOWAX® Quatro 240A torch ( gas cooled, 4m - steel bowden)
✔️ Replacement 4m Teflon Liner for aluminium
✔️ Feeding rollers:
- Steel/Stainless (V-shape) 1.0/1.2mm (installed in Feeder)
- Steel/Stainless steel (V-shape) 0.8/1.0mm (included)
- ALUMINUM (U-shape) 1.0/1.2mm (included)
✔️ Complete wiring, gas hose, clamps
✔️ Cart, because even a welder deserves a comfortable ride
✔️ Manual & warranty (just in case, not that you need it).
Who is the GeniMig®270DP for?
For anyone who is serious about welding. For workshops that need power. For pros who want to be in control. And for anyone who wants the satisfaction of knowing that when you turn on the welder, you know it's just going to work.
FREE:
MIG torch 240A 4m QUARTO (steel liner)
4m Teflon Liner is included
KOWAX® KWX820ARC++ 1/1/1 self-darkening helmet
Ar+CO2 PROFI Gas regulator
Cart (included with power supply)
Separation spray
3m 25mm2 cable with electrode holder 300A - 35-50
3m 25mm2 cable with earth clamp 300A - 35-50
K300 basket coil adapter
Feed feeding rollers:
Steel/Stainless steel (V-shape) 1.0/1.2mm (in Feeder)
Steel/Stainless steel (V-shape) 0.8/1.0mm included
Aluminum (U-shape) 1.0/1.2mm included
Gas hose incl. clamp
Manual
Warranty card.
|
Parameter\Model |
KOWAX® GeniMig®270DP |
||||
|
Mains voltage |
3~400±15%, 50/60Hz |
||||
|
MIG |
TIG |
MMA |
|||
|
Output current range [A] |
40-250 |
10-250 |
30-250 |
||
|
Output voltage [V] |
16-32 |
10,4-22 |
21,2-32 |
||
|
No-load voltage [V] |
74 |
||||
|
Rated input power [kVA] |
9,6 |
||||
|
Load capacity [A] (40℃ 10min) |
30% 250 |
30% 250 |
30% 250 |
||
|
Effect |
0,73 |
||||
|
Protection (slow motor circuit breaker, characteristic C) |
16A/3f |
||||
|
Welding wire diameter [mm] |
0,8/1,0/1,2 |
||||
|
Thickness of base mat. [mm] |
1-6 |
||||
|
Type of Feeder |
4-poster |
||||
|
Cover class |
IP21S |
||||
|
Application class |
F |
||||
|
Dimensions d x w x h [mm] |
820 x 520 x 620 |
||||
|
Net weight of power supply [kg] |
29 |
||||
Additional parameters
| Category: | GeniMig® 270DP |
|---|---|
| Weight: | 45 kg |
| EAN: | 7453141653582 |
| Metody svařování: | MIG/TIG/MMA |
| Síťové napětí: | 3~400±15%, 50/60Hz |
| Průměr drátu: | 0,8/1,0/1,2 |
| Průměr elektrody: | 2,0 - 5,0 |
| Jmenovitý příkon: | 9,6 kVA |
| Jištění: | 16A/3f |
| Zatěžovatel MIG（40℃,10 minut） 30%: | 250 |
| Zatěžovatel MIG（40℃,10 minut） 60%: | 177 |
| Zatěžovatel MIG（40℃,10 minut） 100%: | 137 |
| Napětí naprázdno: | 74 |
| Minimální proud: | 40 |
| Maximální proud: | 250 |
| Typ podavače: | 4kladka |
| Rozměry d x š x v: | 820 x 520 x 620 mm |
| Hmotnost zdroje (netto): | 29 |
