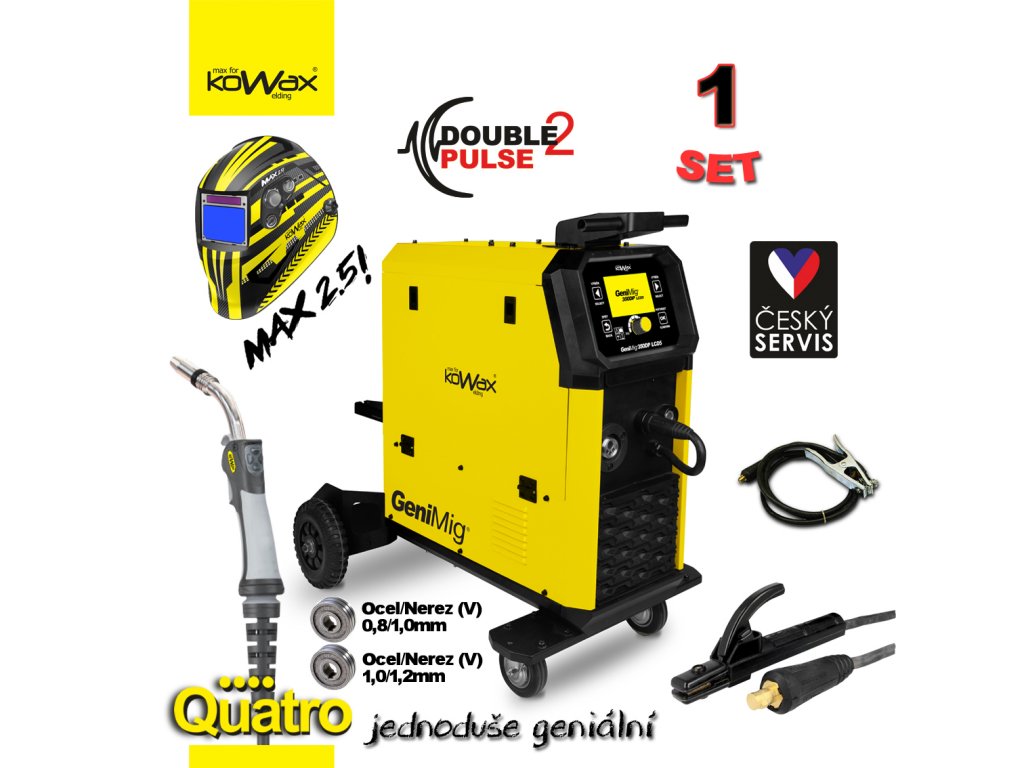

Welding inverter GeniMig® 350DP LCD5 SET1Q (MIG/MAG/LiftTIG)
Code: KWXSTGM350DP_S01Q
_en.png?678531f8)
Related products
Product detailed description
GeniMig®350DP LCD5 power supplies are modern inverter welding power supplies offering very high welding versatility. Their main advantage is the possibility of welding with single or double pulsed current in MIG or MAG mode. Thanks to modern IGBT technology and high quality components, it is the ideal equipment for work in the automotive industry, with steel structures, welding aluminum alloys and more. Reliability, professionalism, wide range of applications - the use of three welding methods MIG/MAG, TIG-LIFT, MMA will satisfy the requirements of even the most demanding users.
Three processes in one device (3in1):
MIG/MAG DC;
TIG LIFT DC;
MMA DC,
IGBT Inverter 350A,
Three-phase input ~3x400V+/-10%,
Synergy,
Short circuit, Single Pulse, Double Pulse
5.0 inch color LCD display
Graphical LCD interface in Czech, English, German, Polish, Russian,
2T/4T
4-fold feeding,
Coils 300mm/15kg, 200mm/5kg,
Digital control,
18 channels for recording,
Over-current and over-temperature protection.
FREE:
- KOWAX® MAX2.5!
- MIG torch 360A 4m Quatro (four button)
- 3m 25mm2 cable with 300A electrode holder and EUR connector
- 3m 25mm2 cable with 300A earth terminal
- Feed feeding rollers:
o Aluminium (U-shaped),1.0/1.2mm
o Steel/Stainless steel (V-shape) 1.0/1.2mm
o Aluminium (U-shape) 1.0/1.2mm
- Gas hose incl. clamp
- Manual.
- Warranty card.
|
Parameter\Model |
KOWAX® GeniMig®350DP LCD5 |
||
|
Mains voltage |
3~400±10%, 50/60Hz |
||
|
MIG |
TIG |
MMA |
|
|
Output current range [A] |
40-350 |
10-300 |
30-300 |
|
Output voltage [V] |
16-32 |
10,4-22 |
21,2-22 |
|
No-load voltage [V] |
74 |
||
|
Rated input power [kVA] |
13,9 |
||
|
Load capacity [A] (40℃ 10min) |
30% 350 |
||
|
Power factor |
0,93 |
||
|
Protection (slow motor circuit breaker, characteristic C) |
20A/3f |
||
|
Welding wire diameter [mm] |
0,8/1,0/1,2 |
||
|
Type of Feeder |
4 tray |
||
|
Protection class |
IP21 |
||
|
Application class |
F |
||
|
Dimensions d x w x h [mm] |
815 x 510 x 800 |
||
|
Weight [kg] |
44,2 |
||
Additional parameters
| Category: | GeniMig® 350DP QUATRO torch |
|---|---|
| Weight: | 68.605 kg |
| EAN: | 0796554471808 |
| Síťové napětí: | 3x400 |
| Metody svařování: | MIG |
| Průměr drátu: | 0,8/1,0/1,2 |
| Průměr elektrody: | 2,0 - 5,0 |
| Napětí naprázdno: | 74 |
| Jmenovitý příkon MIG: | 13,9 |
| Jištění: | 20 |
| Zatěžovatel MIG（40℃,10 minut） 100%: | 192 |
| Zatěžovatel MIG（40℃,10 minut） - plný výkon: | 30% 350 |
| Zatěžovatel MIG（40℃,10 minut） 60%: | 248 |
| Maximální proud: | 350 |
| Minimální proud: | 10 |
| Rozměry d x š x v: | 815 x 510 x 800 |
| Hmotnost (netto): | 44,2 |
