Auto-darkening helmet DIN2.0® (1/1/1/2) SET2
Code: KWX20_S02A
_en.png?678531f8)
Related products
Product detailed description
KOWAX® 2.0 - field of view (95 x 46.5 mm) with DIN2.0 aperture in bright state + with real colors, it is clearly the best choice for all TIG applications, grinding and precision welding can produce. This time can be infinitely controlled within 0.05~1s internally.
- The blackout speed after arc start-up is 0.04ms.
- Off/on - automatic.
- Functions: grinding (internal control).
- Suitable for: Excellent for low TIG ?5 [A]/DC; ?5 [A]/AC; MIG/MAG
Pulse; Plasma Cut./Weld; MMA,TIG, etc.see manual.
Front cover foil with seal - this is very essential - along the unsealed cover
the helmet, fumes and dirt can enter the filter.
- Arched front cover film - provides better reflection of splashes, radiation and also air
gap between the cover sheet and the self-drying filter for better circulation.
air in front of the filter.
- Operating temperature from -10°C ~ +55°C - best in class values on the market.
- Weight 450g.

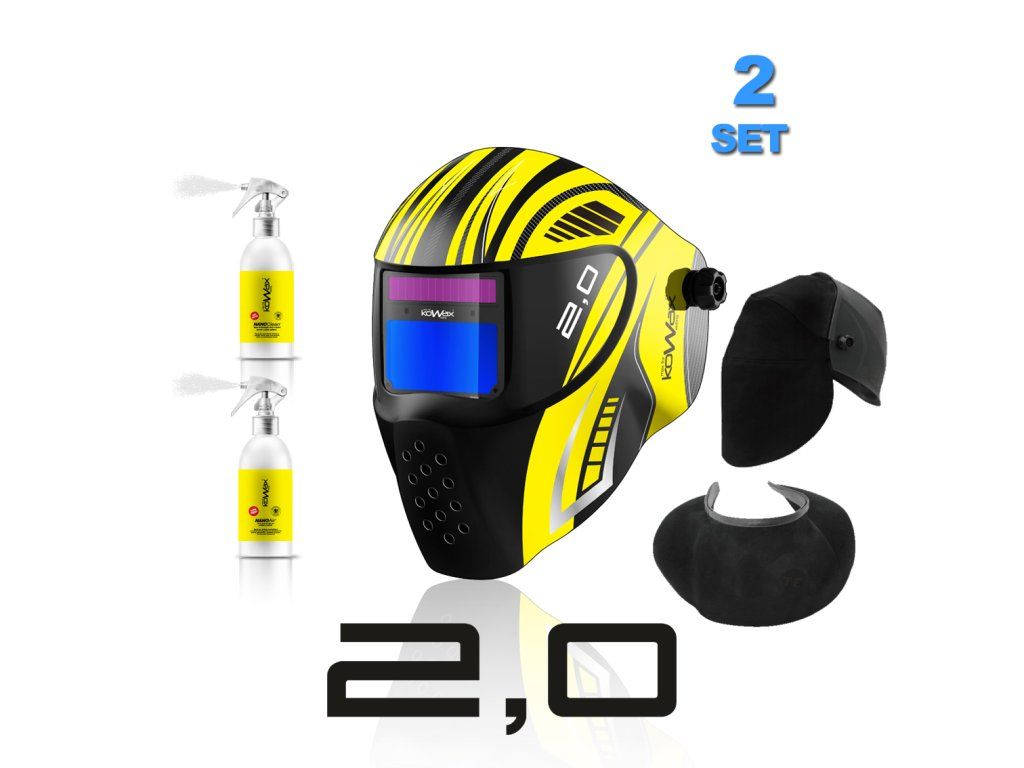

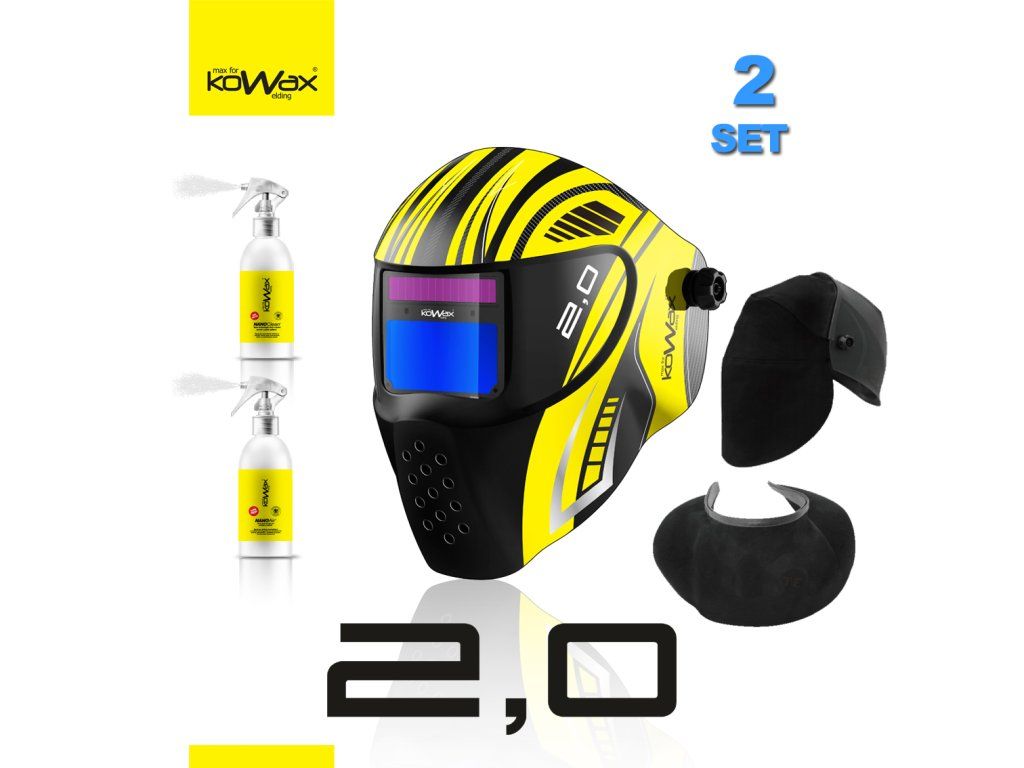

Package contents:
- NanoClean
- Neck protector
- Head protector
- Includes 1pc replacement front cover film
- English manual included
- Warranty card included
Accessories:
- Magnifying glasses (1.5; 2; 2.75 diopters) - MUST BE BUILT ON YOUR OWN
Technical Specifications:

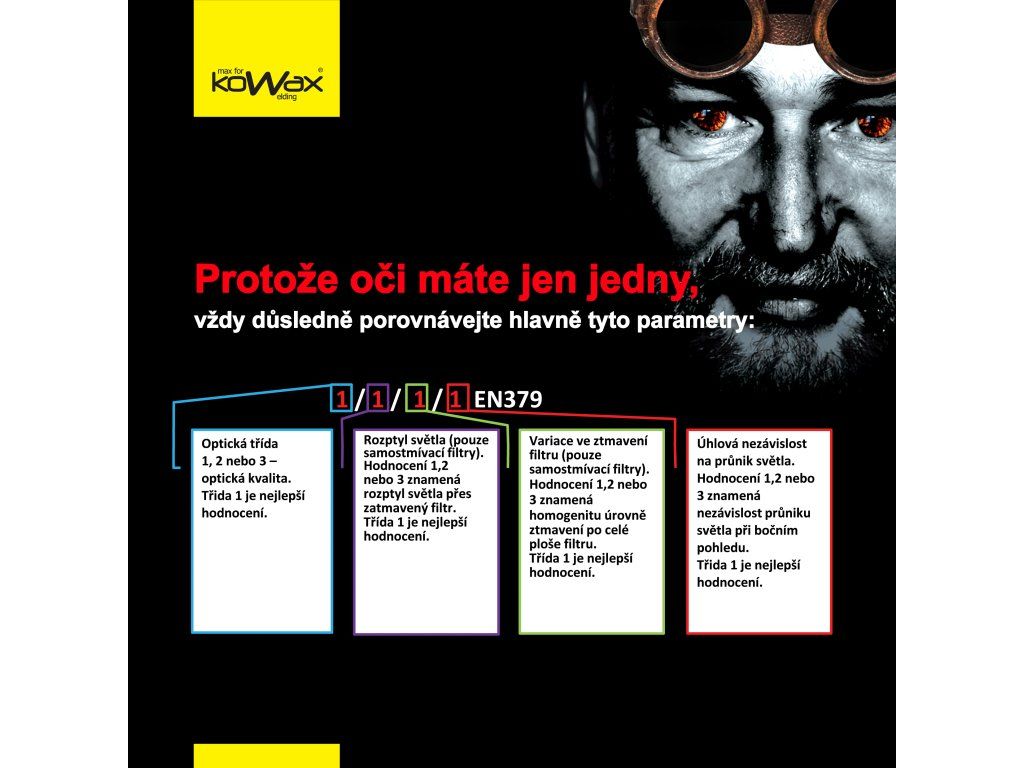

| Optical Class: | 1 / 1 / 1 / 2 |
| Field of view: | 95 x 46.5mm |
| Filter cartridge size: | 110 x 90 x 9mm |
| Number of sensors: | 4 |
| Aperture brightened: | DIN 2.0 |
| Aperture: | Variable DIN 4 ~ 8 / 8~12 |
| Aperture control: | Internal, variable |
| On/Off: | With GAS automatic |
| Sensitivity setting: | Adjustableinternally |
| UV/IR protection: | Up to DIN16 aperture permanently |
| Power Source: | Solar cell + 1xCR2450 replaceable lithium battery |
| Low battery indicator | YES |
| Darkening speed: | 1/25,000 sec. from light to dark |
| Delay (dark to light): | 0.05~1.0s adjustable internally |
| Low current TIG welding: | ? 5 [ A] (DC); ?5 [ A] (AC) |
| Grinding: | YES |
| Battery capacity test | YES |
| Operating temperature: | -10°C ~ +55°C(14°F ~ 131°F) |
| Storage temperature: | -20°C ~ +70°C(- 4°F ~ 158°F) |
| Material of the helmet: | High impact resistant Nylon |
| Total weight: | 450g |
| Application Range: | Holy wrap electrode (SMAW-MMA); TIG DC/AC, TIG DC Pulse; TIG AC Pulse, MIG/MAG/CO2; MIG/MAG Pulse; Plasma cutting (PAC); Plasma welding (PAW); Flame welding (OFW), Oxygen burning (OC), Carbon electrode cutting (CAC-A), Grinding |
| Certified: | CE, ANSI Z87.1, Z94.3, AS/NZS 1338.1 |
Additional parameters
| Category: | Helmets SETS |
|---|---|
| Weight: | 1.363 kg |
| EAN: | 0796554475349 |
