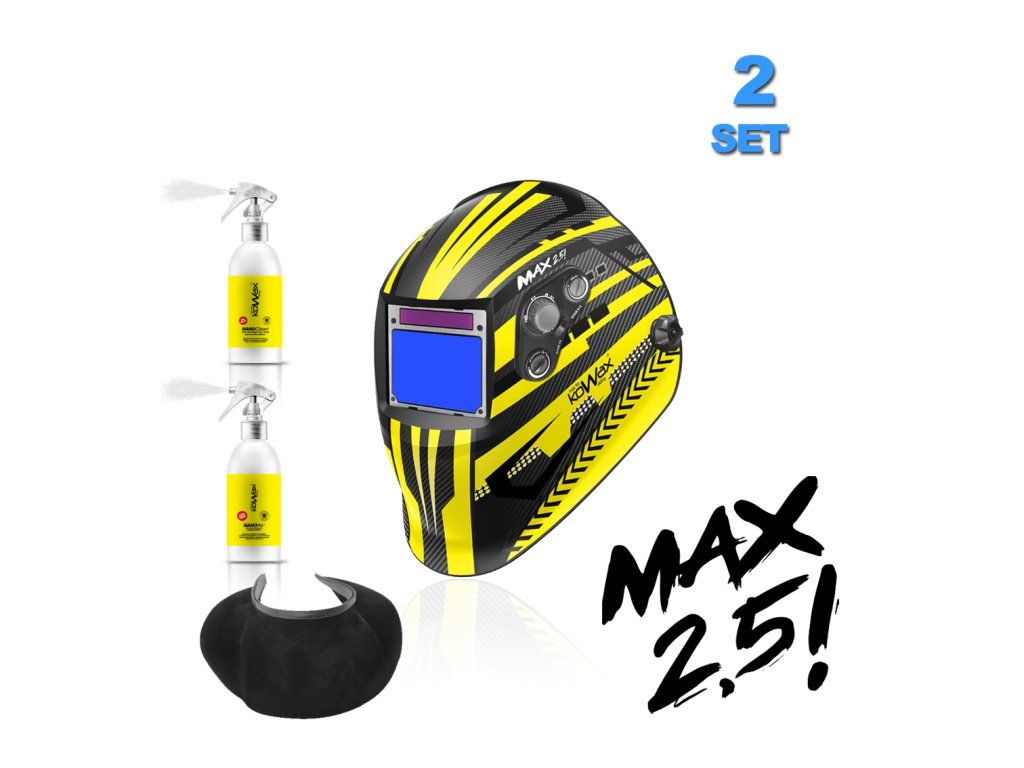

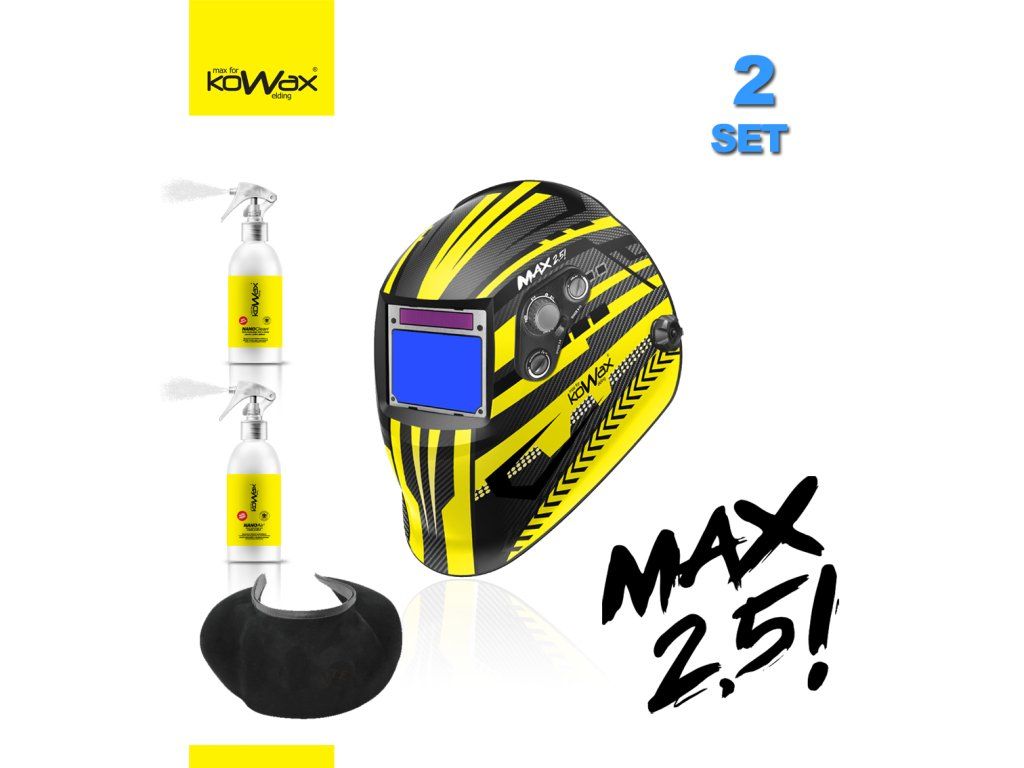

Auto-darkening helmet KWX730MAX2.5!® (1/1/1/2) SET2
Code: KWXMAX25_S02A
_en.png?678531f8)
Related products
Product detailed description
Main advantages:
- DIN2.5 aperture in bright state represents up to 4 times brighter image compared to the market standard DIN4.0.
- Realistic colors across the color spectrum, true to life, red, yellow, blue, green colors.
- Field of view size: 95 x 62 mm.
- 4 optical sensors.
- Permanent UV/IR protection (ultraviolet and infrared light spectrum) aperture 16 DIN - the highest in its class on the market.
- Aperture with brightened filter 2 .5 DIN.
- Continuously variable aperture with darkened filter (when welding) 5-8, 8-12 DIN controlled externally by potentiometer.
- Reliable arc detection from 2 [A] (also in pulse ).
- The filter is powered by solar cell + replaceable lithium battery CR2450, this solution ensures a long service life.
- The self-dimming filter is equipped with a low battery LED indicator.
- Delay setting, so you can set how long after the arc is extinguished the filter will brighten again (up to aperture 2,5), so as to compensate for the residual brightness that the beam/weld may produce. This time can be infinitely adjusted from 0.1~1s by an internal potentiometer.
- The darkening rate after arc start-up is 0 .04 ms.
- Switching off/on - automatic.
- Function .
- Suitable for: excellent for low TIG ≥2 [A]/DC; ≥2 [A]/AC, MIG/MAG; MIG/MAG Pulse; Plasma Cut./Weld.; MMA,TIG, etc.see manual.
- Front cover foil with seal - this is very essential - fumes and dirt can enter the helmet to the filter along the unsealed cover foil.
- Arched front cover sheet - provides better reflection of spatter, radiation and also an air gap between the cover sheet and the self cleaning filter for better circulation
air in front of the filter. - Operating temperature from -10°C ~ +55°C - best in class values on the market.
- Weight 580g.
Accessories:
- Magnifying glasses (1.5; 2; 2.75 diopters) - MUST BE PURCHASED SELF-PURCHASED
- 1pc spare front cover foil included
- Czech manual included
- Warranty card included
FREE- NANOClean 200ml helmet cleaner
FREE- KOWAX Leather Neck Protector
|

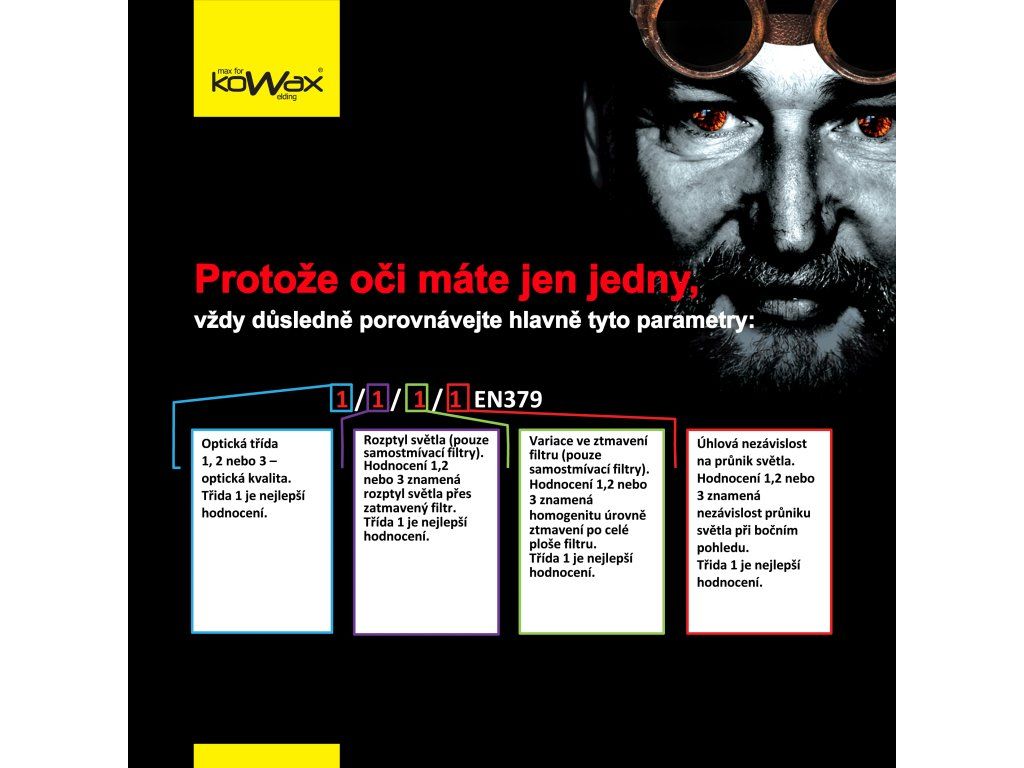

Optical grade: |
1 / 1 / 1 / 2 |
|
Field of view: |
95 x 62mm ( 3.74" x 2.44") |
|
Filter cartridge size: |
110 x 90 x 9mm (4.33" x 3.54" x 0.35") |
|
Number of sensors: |
4 |
|
Aperture Brightened: |
DIN 2.5 |
|
Aperture: |
Variable DIN 5 ~ 8 / 8 ~ 12 |
|
Aperture control: |
External, variable |
|
On/Off: |
With GAS automatic |
|
Sensitivity setting: |
Externally adjustable with potentiometer |
|
UV/IR protection: |
Up to DIN16 aperture permanently |
|
Power source: |
Solar cell + 1xCR2450 replaceable lithium battery |
|
Low battery indicator |
YES |
|
Darkening speed: |
1/25,000 sec. from light to dark |
|
Delay (dark to light): |
0.1~1.0s adjustable externally by potentiometer |
|
Low current TIG welding: |
≥2 [ A] (DC); ≥2 [A] (AC) |
|
Grinding： |
YES |
|
Battery capacity test |
YES |
|
Working temperature: |
-10°C ~ +55°C（14°F ~ 131°F） |
|
Storage temperature: |
-20°C ~ +70°C（- 4°F ~ 158°F） |
|
Helmet material: |
High impact resistant Nylon |
|
Total weight: |
580g |
|
Application Range: |
Holy wrap electrode (SMAW-MMA); TIG DC/AC, TIG DC Pulse; TIG AC Pulse, MIG/MAG/CO2; MIG/MAG Pulse; Plasma cutting (PAC); Plasma welding (PAW); Flame welding (OFW), Oxygen burning (OC), Carbon electrode cutting (CAC-A), Grinding |
|
Certified: |
CE, DINplus,ANSI Z87.1, CSA Z94.3 |
Additional parameters
| Category: | MAX2.5 |
|---|---|
| Weight: | 1.486 kg |
| EAN: | 0796554475011 |
| Model: | MAX25 |
| Vhodná pro metody: | TIG / MIG / MMA |
| Celkové rozměry stmívací kazety: | 110x90x9 |
| Rozměr zorného pole: | 95x62 |
| Optická třída EN379: | 1/1/1/1 |
| Rozsah clony DIN: | 5-8 / 9-13 |
| Prodleva před rozjasněním: | 0,1 - 1 |
| Solární panel: | ANO |
| Počet senzorů: | 4 |
| Clona při rozjasnění DIN: | 3,5 |
| Ochrana pře UV/IR zářením: | DIN 16 |
| Rychlost zatmavení: | 0,04 |
| Hmotnost: | 0,58 |
| Režim broušení: | ANO |
| Indikátor stavu baterie: | ANO |
| Zapnutí: | Plně automatické |
| Materiál: | Nylon |
| Pracovní teplota: | -10°C / +55°C |
| Citlivost: | Plynule nastavitelná |
