Welding inverter GeniWeld® 5in1 200 SET1 (MIG/PLASMA/ACTIG/DCTIG/MMA)
Code: KWXSTGW5IN1_S01
_en.png?678531f8)
Related products
Product detailed description
The KOWAX® GeniWeld®5v1 200 inverter is suitable for all kinds of welding, for welding various stainless steel, carbon steel, alloy steel, titanium, magnesium, copper, etc., which are also used for pipe installation, mold repair, petrochemical, architectural decoration, automotive, bicycle repair, craft and general fabrication.
The KOWAX® GeniWeld®5v1 200 inverter is suitable for all types of welding, for welding various sheets of stainless steel, carbon steel, alloy steel, titanium, magnesium, copper, etc., which are also used for pipe installation, mould repair, petrochemistry, architectural decoration, automotive repair, bicycle repair, craft and general fabrication.

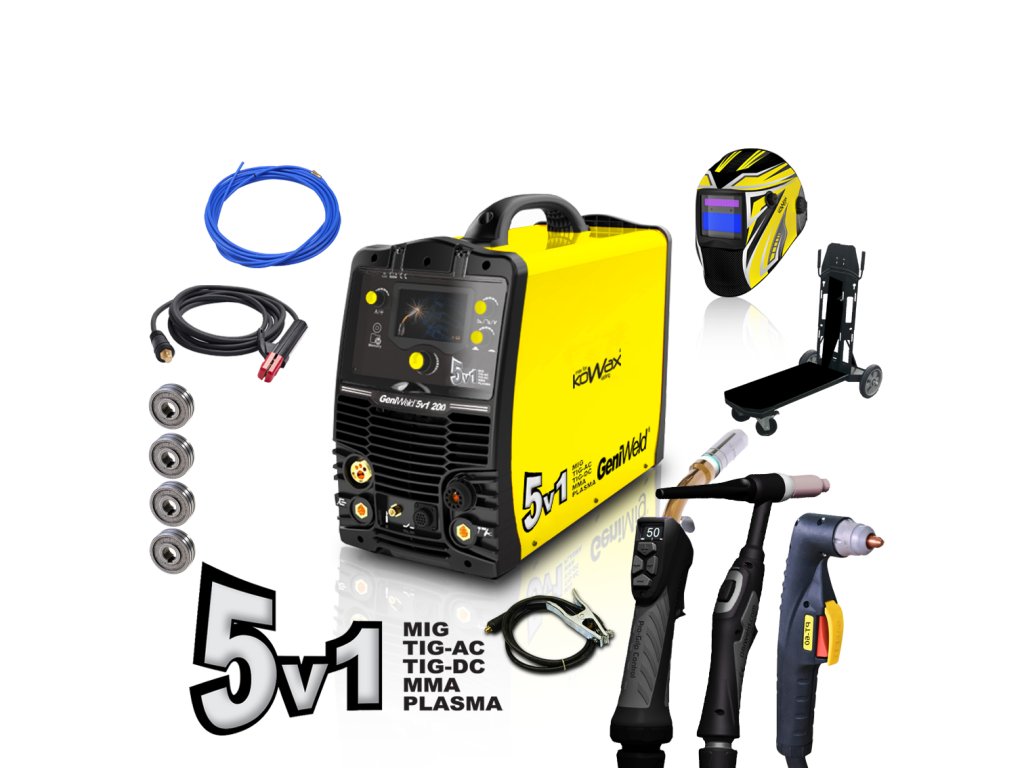

FREE:
- MIG OLED torch 250A 3m
- TIG torch PRO26 10K POT 3m
Plasma torch PT-60 16MM2 6m
- 3m 25mm2 cable with 300A electrode holder and EUR connector
- 3m 25mm2 cable with 300A earth terminal
Cart KWXSTGT315WPs
KOWAX® KWX3 auto-darkening helmet.
Teflon liner for Al welding 1,0-1,2mm 5m
- Feeding rollers:
o AL 0.8/1.0mm (U)
o AL 0,9/1,2mm (U)
o Steel 0,8/1,0mm (V)
o Steel 1.0/1.2mm (V)
- Gas hose incl. clamp
- Manual.
- Warranty card.
|
Parameter\Model |
KOWAX® GeniWeld®5v1 200 |
|||||
|
Mains voltage |
1~230V±10%, 50/60Hz |
|||||
|
Functions |
Cutting |
MIG |
TIG |
MMA |
||
|
DC |
DC |
DC |
AC |
DC |
AC |
|
|
Power input (KW) |
6,6 |
5,95 |
5,7 |
5,82 |
6,84 |
7,26 |
|
Input current (A) |
29,2 |
26,2 |
25,0 |
25,7 |
29,7 |
32,2 |
|
Input effective current (A) |
16 |
14,4 |
12,5 |
14,1 |
16,2 |
16,1 |
|
Load cell (40°C 10min) |
30%40A 60%28A 100%22A |
30%200A 60%140A 100%110A |
25%200A 60%130A 100%100A |
30%200A 60%140A 100%110A |
30%200A 60%140A 100%110A |
25%200A 60%130A 100%100A |
|
Welding current range (A) |
20~40 (Cutting/Grid) 15~40 (Grooving) |
10~220 |
10~200 |
|||
|
No-load voltage (V) |
210V |
45 V （driven） |
||||
|
MAX productive cut of carbon steel thickness |
15 mm |
|||||
|
Up/Down Slope time(s) |
0,1-10 |
|||||
|
Pulse frequency (Hz) |
0,5-200 |
|||||
|
Pulse width range (%) |
5-100 |
|||||
|
AC TIG frequency (Hz) |
25-200 |
|||||
|
AC TIG balance (%) |
15-50 |
|||||
|
Protection (slow motor circuit breaker, characteristic C) |
16A/1f |
|||||
|
Power factor |
0,98 |
|||||
|
Wire diameter (mm) |
Steel:0,6/0,8/0,9/1,0 Stainless steel:0,8/1,0 Aluminium:0,9/1,0 Flux cored:0,9 (self-covered)/1,0/1,2 |
|||||
|
Cover class |
IP23 |
|||||
|
Class of use |
F |
|||||
|
Cooling |
AF |
|||||
|
Dimensions d x w x h (mm） |
628 x 270 x 453 |
|||||
|
Weight (kg) |
30 |
|||||
Additional parameters
| Category: | GeniWeld® 5in1 200 |
|---|---|
| Weight: | 70.3 kg |
| EAN: | 0796554470863 |
| Metody: | MIG, TIG DC, TIG AC, MMA, Plazma |
| Síťové napětí: | 1x230 |
| Průměr drátu: | 0,8/1,0/1,2 |
| Průměr elektrody: | 2,0 - 5,0 |
| Jmenovitý příkon MIG: | 14,4 |
| Jištění: | 16A/1f C/D |
| Zatěžovatel MIG（40℃,10 minut）100%: | 110A |
| Zatěžovatel MIG（40℃,10 minut）60%: | 140A |
| Zatěžovatel MIG（40℃,10 minut）30%: | 200A |
| Rozměry d x š x v: | 628 x 270 x 453 |
| Hmotnost zdroje (netto): | 30 |
